Left: Kazoo with text Kazooformation Right: OSI Model with physical layer replaced with a picture of a kazoo

An engaging teaching tool for the lowest layer of the OSI model. Send and receive data via sound using kazoo noises!

Project Features

Project organization UML diagram

Kazoo Translation Layer (KTL)

The primary component of this project is the Kazoo Translation Layer (KTL), which is a C++ library that converts any serialized data to and from kazoo sounds using various modulation techniques.

Here is an example of how data is translated into kazoo sounds using one of the basic binary models:

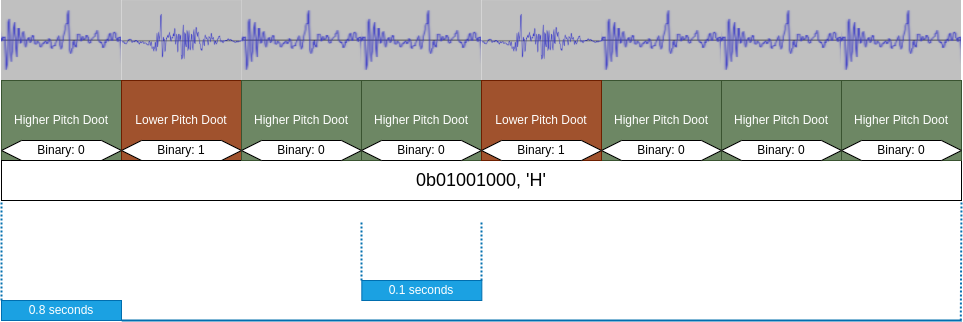

ASCII 'H' visualized as kazoo sounds

And this is what that sounds like:

https://github.com/user-attachments/assets/2616b039-56e6-47bb-b4c9-5c690887d0fb

Kazoo Connect

Kazoo Connect is an application example of the KTL library. It's a bare bones chat client that can be used to communicate between two computers using only audio peripherals.

Kazoo Connect: A terminal chat client that uses the KTL to send and receive data over a network using kazoo sounds.

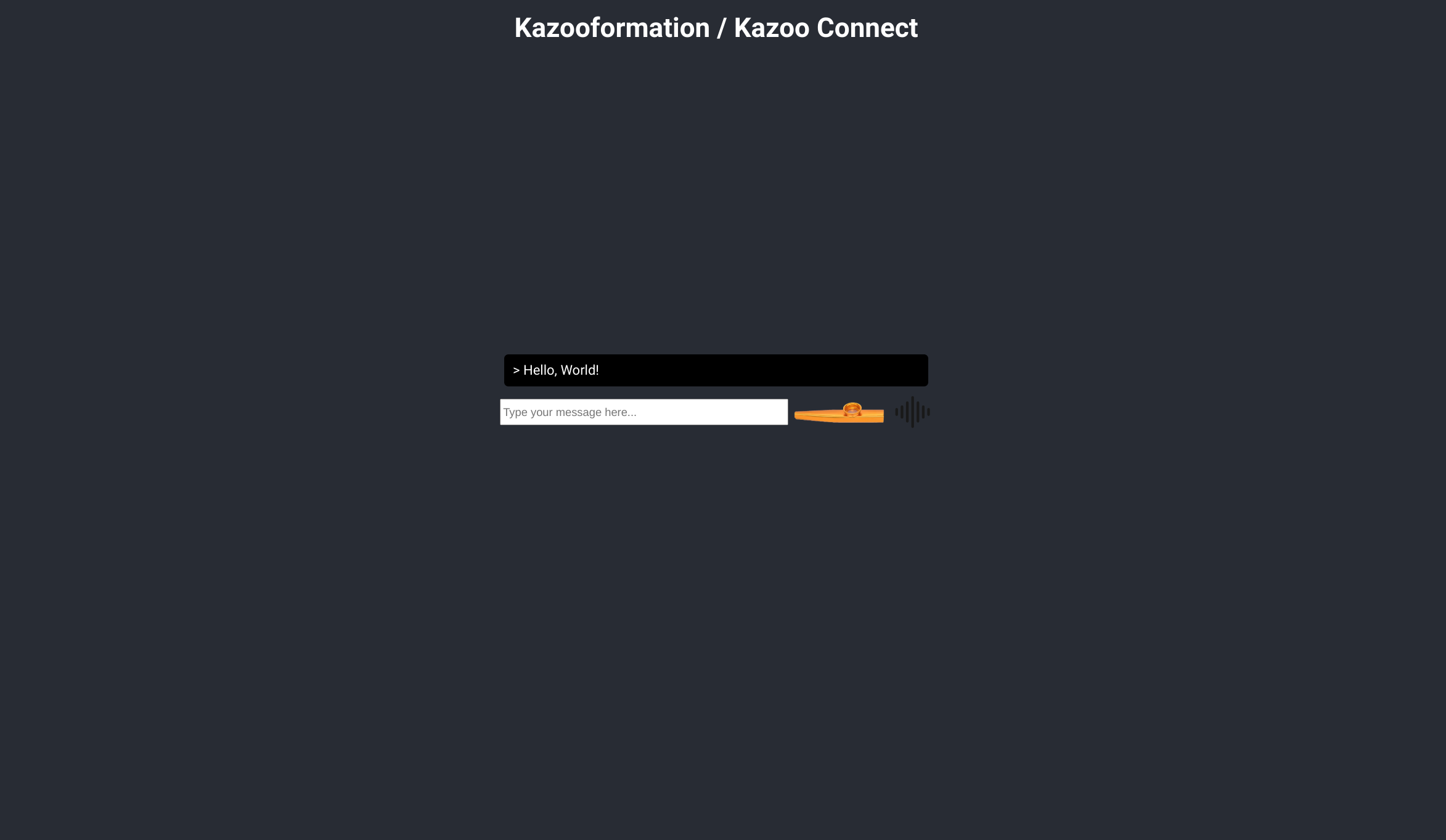

Kazoo Connect Server/Web Client: A TCP socket HTTP server version of Kazoo Connect that can be used with a web client. (there is a bare bones react app as well)

The Kazoo Connect chat client

Build & Run

Simple CMake/GCC build system

Build Essential, Lib FFTW-3, and Pulse Audio must be installed.

git clone git@github.com:joshua-jerred/kazooformation.git
cd kazooformation

# Run the build script and follow the prompts. The executables will be placed in the root of the project.
bash build_all.sh

# Set the default audio sink and source for pulse audio.
# On linux hosts this step is often not needed.
pactl list sinks
pactl set-default-sink <SINK_NUMBER>
pactl list sources
pactl set-default-source <SOURCE_NUMBER>

# Launch Terminal Chat Client
./kazoo_connect

# Or Launch The Web Server (For the web client)
./kazoo_connect_server

Run With Optional Web Server

The executable kazoo_connect_server runs a very basic http server that can be used alongside a react app found in ./src/kazoo_connect_server/web_client. This can be run like any other NPM project.

npm install

npm run start

Licensing

This project does not have a license yet, please contact me if you want to use this or need a license applied.

Attribution

src/web_client/public/soundwave.svg is from https://composeicons.com/icons/bootstrap/soundwave, it falls under the MIT license.
